DP series

PRODUCTS > Self-priming jet pump > DP series
    • 1
    • 2

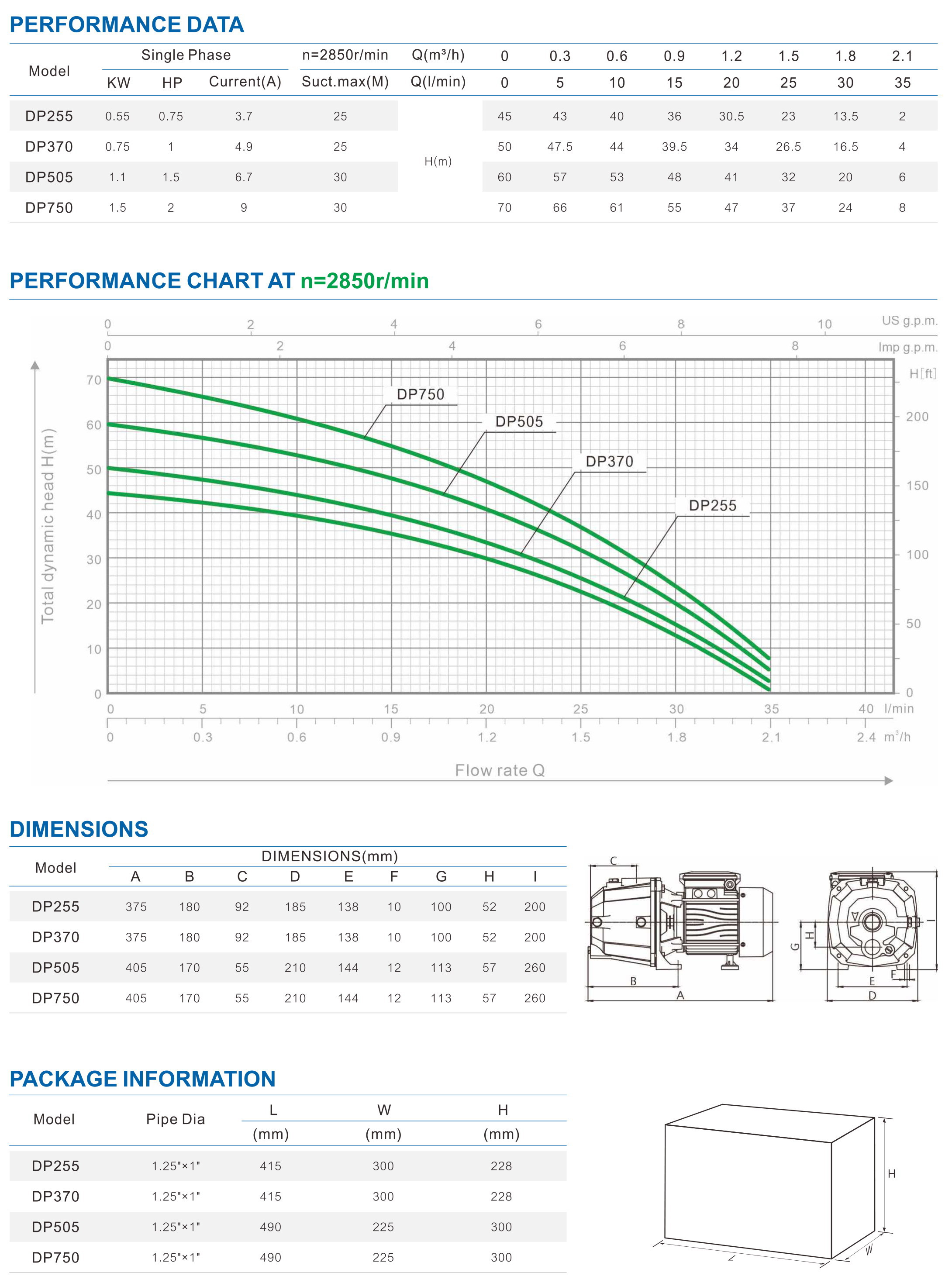

DP series

DP pump comprises a ejector unit and a centrifugal pump. The most remarkable character is it can be used to supply clean water from a relatively deep well, it is also suitable for chemically non-aggressive fluid toensure the adequate counter pressure, it is always installed a foot valve with a filter on the suction opening.

APPLICATION
Pump body: Cast iron / Stainless steel AlSl 304
lmpeller: Brass / PPO
Motor: Closed,externally ventilated
lnsulation class: B(Class F if required)
Protection class: lP44
Duty: Continuously rated
Mechanical seal: 14 17 ceramic steatite/graphite
Shaft: Carbon steel AlSI 1045(Stainless steel AlSI 420 if required)

The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz,220/440V/60Hz,
Single phase 230V, 240V,127V,110V,115V/60Hz models are available on request




Name
Phone
Email
Corporate name
Address
Leaving Message*

Verification code
Submit

JET-S series

The JETS series pumps are with an automatic ejector system, stainless steel pump body and spare parts . These pumps are suitable for clean water and chemically aggressive liquid.They are very reliable, safe and simple to use. APPLICATION Pump body: Cast iron lmpeller:Brass/Stainless steel/PPO Motor: Closed,externally ventilated lnsulation class: B(Class F if required) Protection class: lP44 Duty: Continuously rated Mechanical seal: 12 14 ceramic steatite/graphite Shaft: Carbon steel AlSl 1045(Stainless steel AlSI420 if required) The normal power standard is 220V 50Hz single phase. Three phase 220/380V/50Hz,220/440V/60Hz, Single phase 230V, 240V,127V,110V,115V/60Hz models are available on request

JSP series

The JSP series pumps are with an automatic ejector system, stainless steel pump body and spare parts . These pumps are suitable for clean water and chemically aggressive liquid.They are very reliable, safe and simple to use. APPLICATION Pump body: Stainless steel AISI 304 lmpeller Brass/Stainless steel/PPO Motor. Closed, externally ventilated lnsulation class: B(Class F if required) Protection class: IP44 Duty: Continuously rated Mechanicalseal: l2 14 ceramic steatite/graphite Shaft: Carbon steel AISl1045(Stainless steelAlSl 420 if required) Thermal Protector The normal power standard is 220V 50Hz single phase.Three phase 220/380V/50Hz,220/440V/60Hz, Single phase 230V, 240V,127V,110V,115V/60Hzmodels are available on request

JETST series

The JETST series pumps are with an automatic ejector system,stainless steel pump body and spare parts . These pumps are suitable for clean water and chemically aggressive liquid. They are very reliable, safeand simple to use. APPLICATION Pump body: Stainless steel AlSl 304 lmpeller: Brass/Stainless steel/PPO Motor: Closed,externally ventilated lnsulation class: B(Class F if required) Protection class: lP44 Duty: Continuously rated Mechanical seal: 12 14 ceramic steatite/graphite Shaft: Carbon steel AlSI 1045(Stainless steel AISl420 if required) Thermal Protector The normal power standard is 220V 50Hz single phase. Three phase 220/380V/50Hz,220/440V/60Hz, Single phase 230V, 240V,127V,110V,115V/60Hz models are available on request
