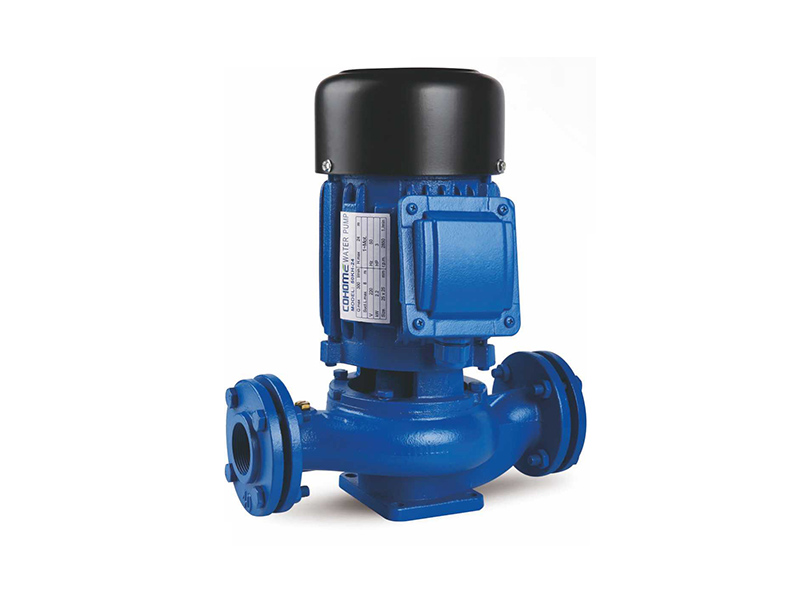

KH series

KH type centrifugal inline pumps are high efficiency pumps, which possess merits of perfect structure, high performance, less energy consumption, durable in use and easy maintenance. lt is widely used for liquid delivery in chemical, light industryand civil constructions as well as water supplying to highbuildings and water circulation for central air-conditioners.Liquid: clean water or similar liquid
Temperature:80oC(Hot water type available on request)
Pressure: 1MPa

Pump body: Cast iron
Impeller: Brass(Cast iron or Aluminum if required)
Motor: Closed,externally ventilated
lnsulation class: B(Class F if required)
Protection class: lP44
Duty: Continuously rated
Mechanical seal:12—17 ceramic steatite/graphite
Shaft: Carbon steel AISI 1045(Stainless steel AlSI 420 if required)

The normal power standard is 220V 50Hz single phase.
Three phase 220/380V/50Hz,220/440V/60Hz,
Single phase 230V,240V,127V,110V,115V/60
Hzmodels are available on request
